| Technical specifications | |
|---|---|
| Input voltage | 12 - 24 Volt DC |
| Wattage | max. 36 Watt at 12 Volt DC input max. 72 Watt at 24 Volt DC input |

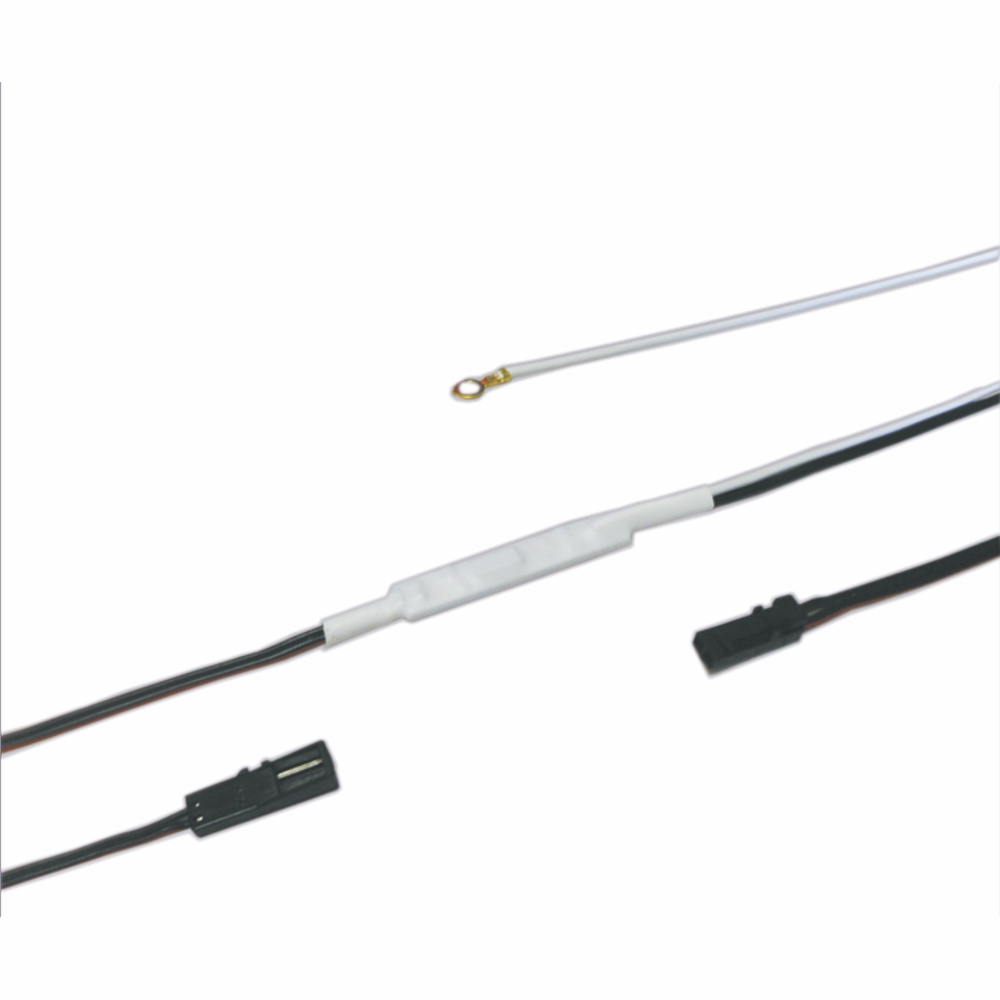

| Type | 2000 mm mains lead with LED plug-in connection 500 mm lead with LED socket 300 mm sensor lead with ring terminal M4 |
| Dimensions | 90 x Ø 10 mm |
| Remarks | installation on secondary side between transformer and light, for touch sensetive switching and dimming of LED lights, can be build into lights because of the compact construction |
| Article code |
|---|
| 39.441.000 |
