| Technical specifications | |
|---|---|
| Input voltage | 12 - 24 Volt DC |
| Wattage | max. 24 Watt at 12 Volt DC input max. 48 Watt at 24 Volt DC input |
| Type | 1000 mm mains lead with LED plug-in connection, 1000 mm lead with 2 pieces LED socket |
| Dimensions | 11.8 x 63 x 10.8 mm |
| Built-in dimensions | Ø 14 x 63 mm |
| Remarks | installation as build in or surface mounted device. ON / OFF and door switch function can be set with an integrated switch, with dimming function in ON / OFF mode, max. detection range approx. 50 mm |
| Article code | Type |
|---|---|
| 39.504.501 | ON / OFF |

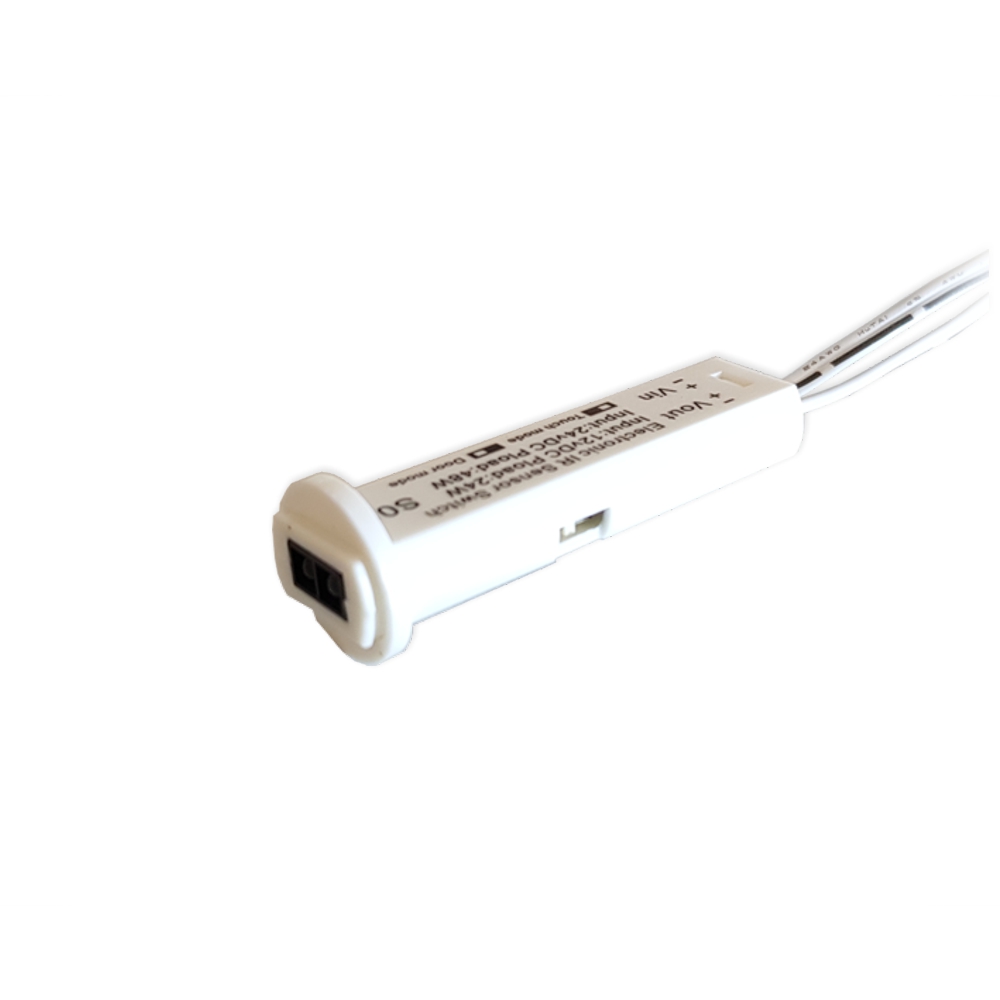

| 39.504.001 | door switch |
